TTC Honey Heart Switches Cheap Sale Outlet Store

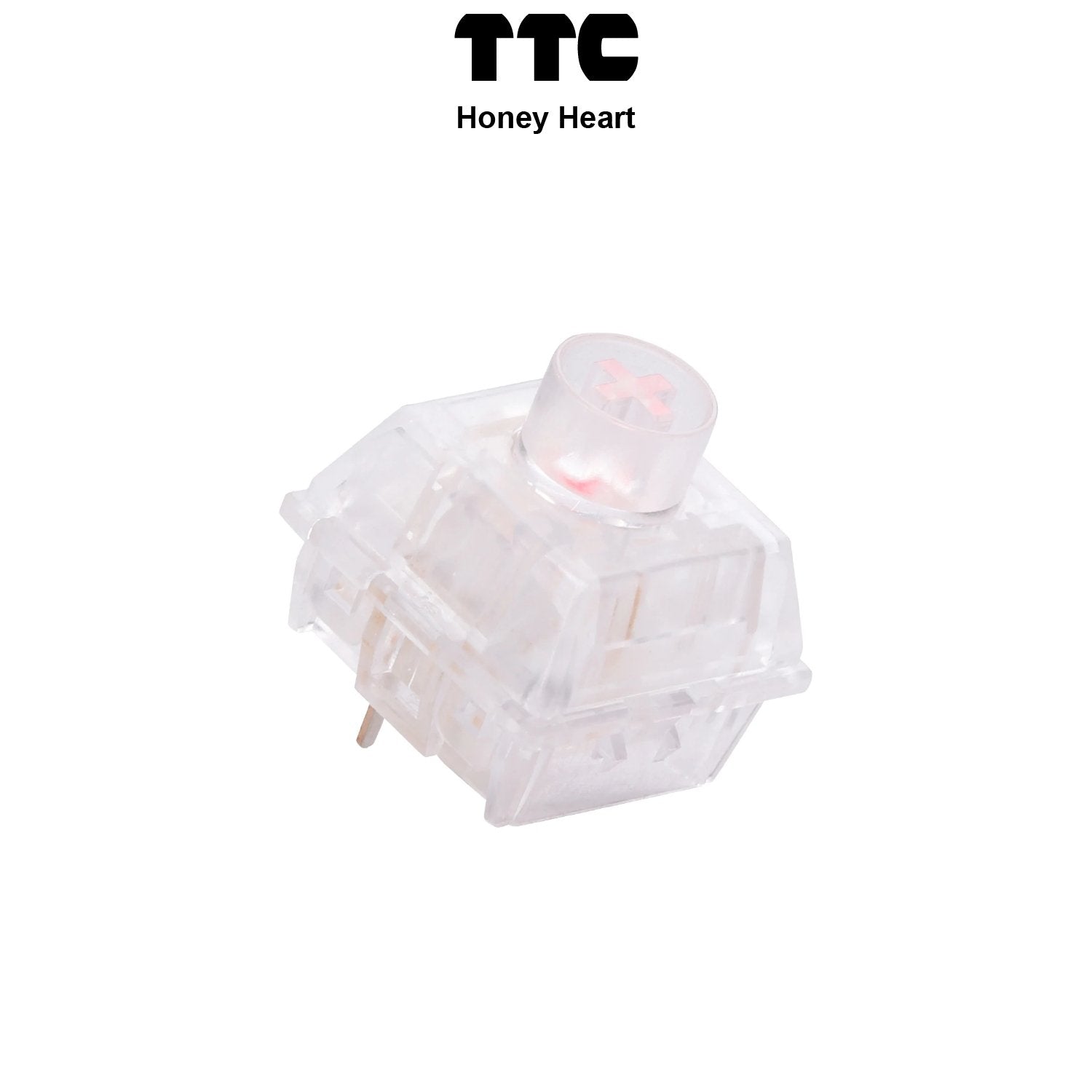

TTC Honey Heart

• TTC Honey（3 pin linear），Pressure in grams: 42±5gf，Pre-travel: 2.0±0.4mm，Total travel: 3.8±0.4mm，Pressing sound: quiet
• The honey switches pins are reinforced at the part where the pin and the axis are connected, and the quality and scope of the reinforcement are excellent.
• The shrapnel is silver-plated shrapnel, which should be for the aesthetics of the overall transparent shell.
• The contact point is gold-plated design (improves conductivity stability).
• The spring of the honey switch is very long. The spring is a gold-plated spring with a life specification of 60 million times. It can only support LEDs soldered on the PCB, and does not support plug-in lights.

Specification

• Linear switch
• 42±5gf operating force
• 2.0±0.4mm pre travel
• 3.8±0.4mm total travel
