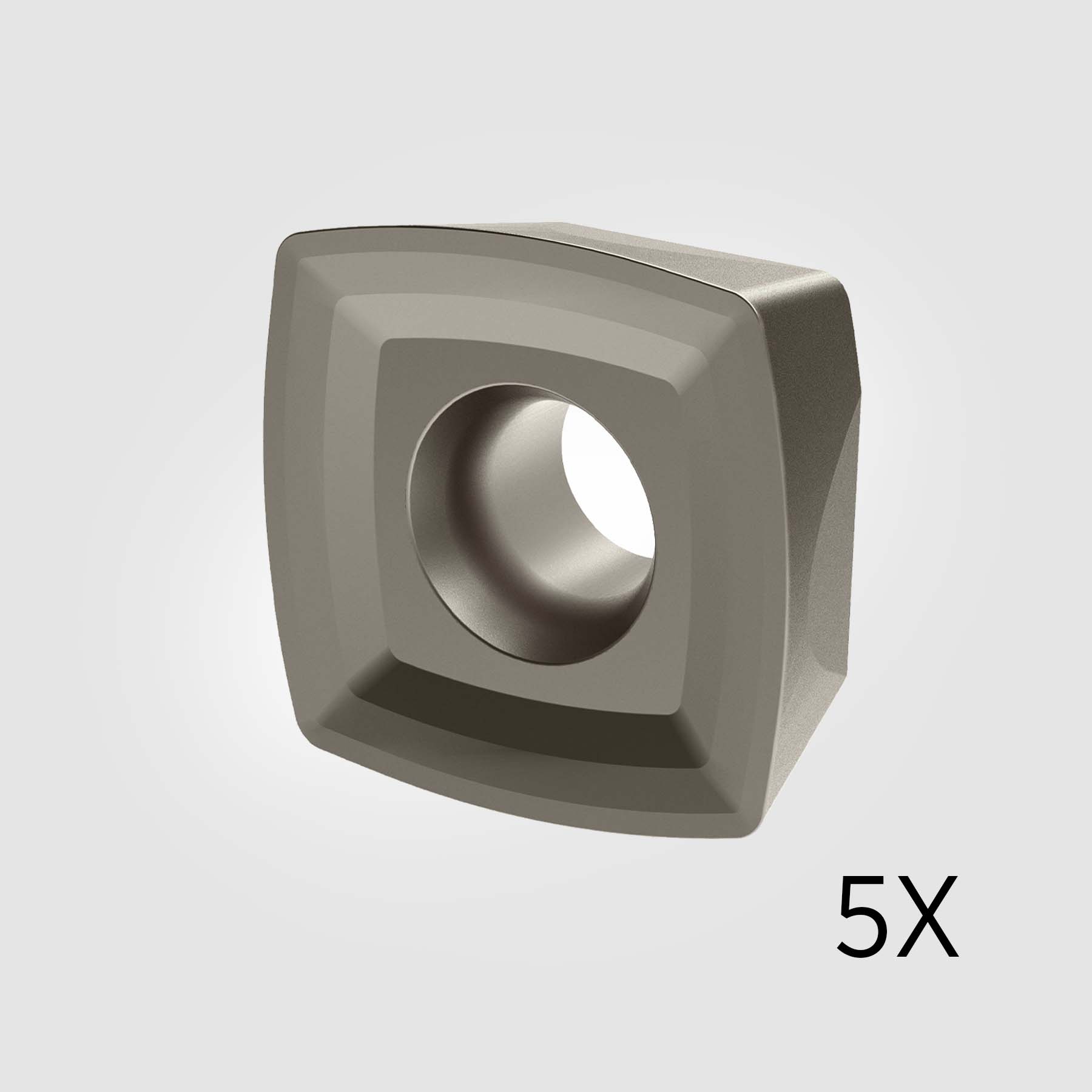

SP6519 Carbide Inserts General Duty in Stainless Steel CR 0.031″ / 0.800mm (5-PACK) 6010773 Official Online

High-Feed Milling Inserts

• Productivity booster in all materials.
• Improved cost per edge.

Materials

• Primary:Stainless Steel,Steel
• Secondary:High-Temp Alloys

Technical Data

• Quantity:5
• Cutting Edges per Insert: 4
• Grade:SP6519
• Coating:TiAlN
• Tool Family:XDPT-12-D41
• [D] Insert Size (Inch):0.500″
• [D] Insert Size (Metric):12.700mm
• [L10] Edge Length (Inch):0.500″
• [L10] Edge Length (Metric):12.700mm
• [S] Insert Thickness (Inch):0.219″
• [S] Insert Thickness (Metric):5.556mm
• Corner Radius (Inch):0.031″
• Corner Radius (Metric):0.800mm

Country of Origin is subject to change.

Safety data sheets upon request.
