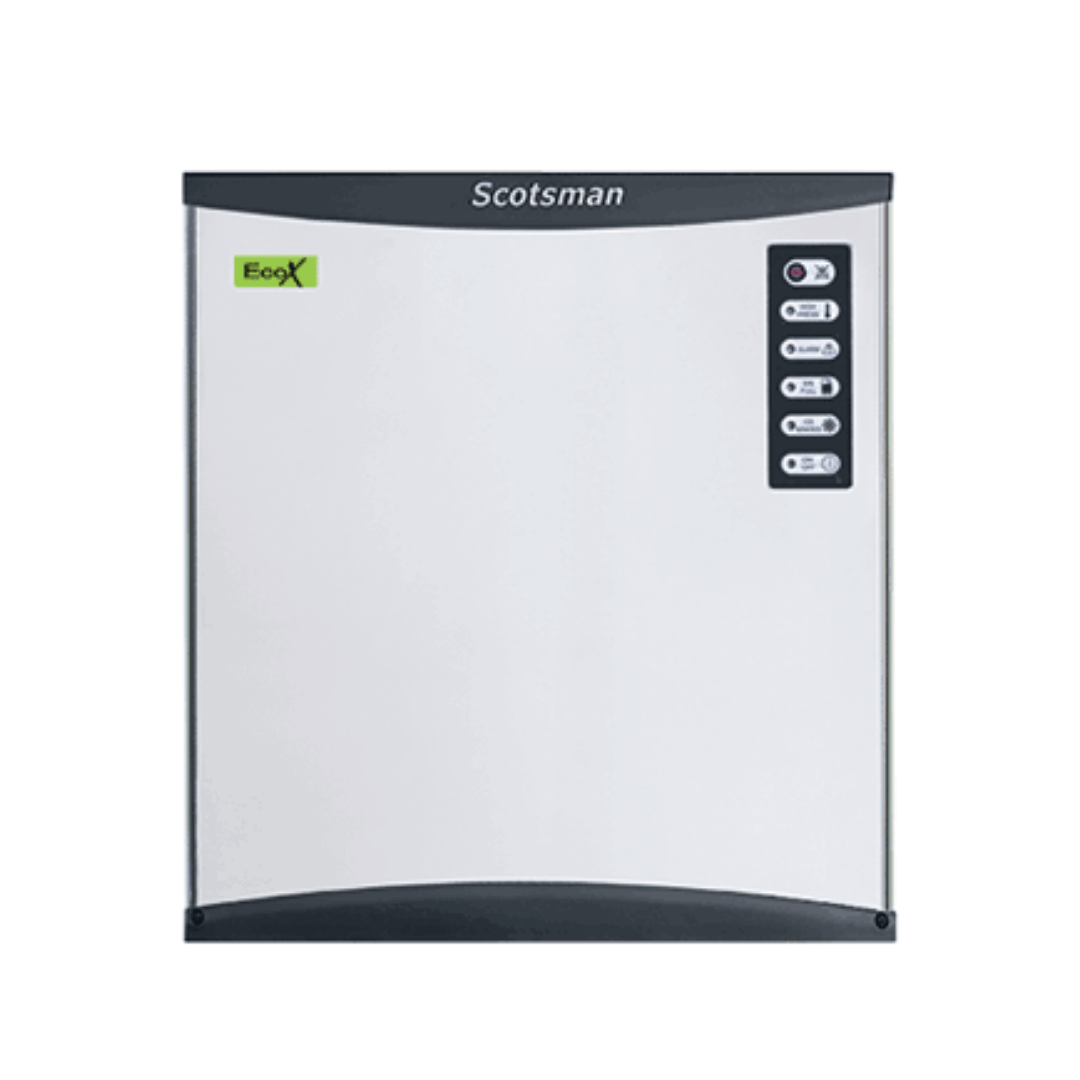

Scotsman EcoX & XSafe Modular Ice Dice Ice Maker 199kg Production (Head Only) – NW 507 AS OX
Model Number: NW 507 AS OX
Dimensions: W: 560mm D: 610mm H: 622mm
Packed Weight: 77kg
Product Features
- Head only Ice maker
- 199kg daily production rate
- W 22mm x 22mm dia x H 22mm, 10g Ice cube
- Air cooled version
- Agion Technology resists microbe’s growth and odours development to produce pure, clear and transparent ice cubes
- EcoX hydrocarbons R290 refrigerant gas
- XSafe – Natural Sanitation System
- Vertical evaporator spray-system technology
- Top air discharge – suitable for narrown space installation
- Front evaporator access for easy servicing
- One touch button for easy cleaning
- T304 grade stainless steel exterior
- Auto-alert indicator lights to show operation status and maintenance
- Requires storage bin model NB 193, NB 393 with CBT 30 52 AMCD cover (required cover when used with NB 393)
- Includes removable air filter, water & drain hose
- No. Circuit wire: 3
- Compressor: 2941W
- Warranty: 3 years on parts and labour (except water filter)
Recommended Storage Bins:
- NB 193 (129 kg storage capacity) – $1,838.10 (inc. GST)
- NB 393 (179kg storage capacity) – $1,948.10 (inc GST)
- NB 530 (243 kg storage capacity) – $2,082.30 (inc GST)
- CBT 30 52 AMCD (Required cover with NB 393 storage bins) – $179.30 (inc GST)
Air cooled version:
NW 507 AS: 10.7 litres per hour
NWH 507 AS: 10.0 litres per hour
NWL 507 AS: 10.5 litres per hour
Electrical rating
Air cooled version:
230-240V, 1P+N+E, 50Hz, 1210W, 10A cordset supplied
NW 507 AS: 21.1kW/hr
NWH 507 AS: 20.2kW/hr
NWL 507 AS: 19.9kW/hr
Best known for their reliability and affordability, Scotsman Ice Systems had a wide range to suit various industries
Scotsman is one of the first in the field to research and develop a range of affordable and reliable ice-making machines since the 1950’s. It remains the world’s largest ice machine manufacturer in over 100 countries. From restaurants, bars or hotels, to laboratories, hospitals and food processing facilities, Scotsman Ice System serves an important role to cater the needs of different industries by combining efficiency and ease of maintenance in their affordable, innovative and reliable ice making systems.
