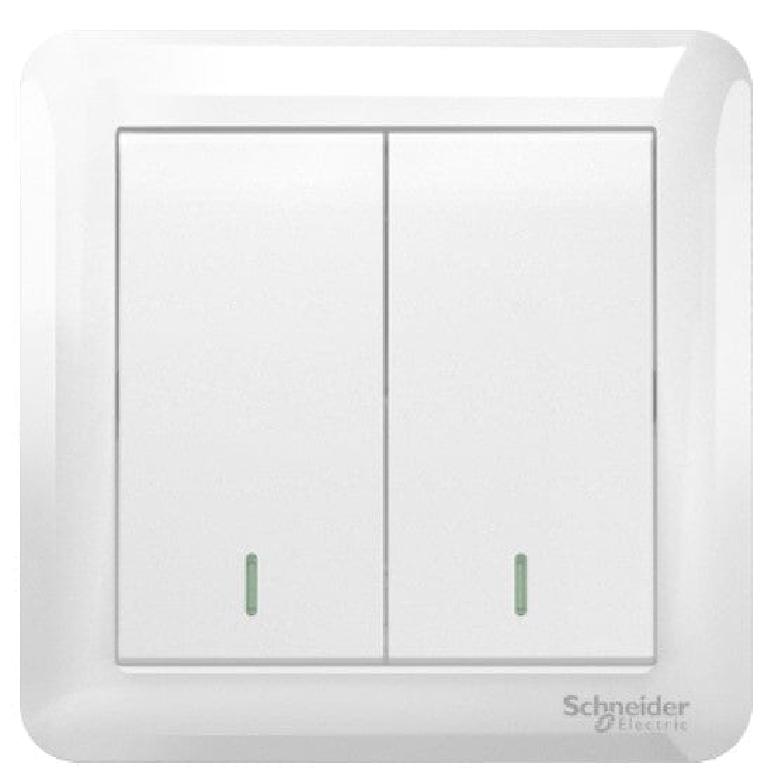

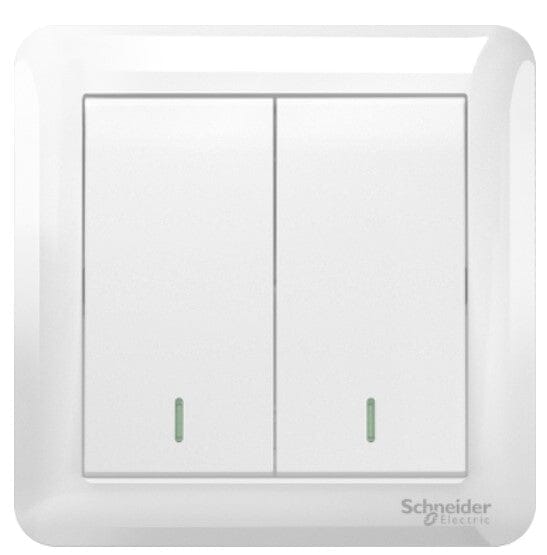

Schneider 10AX 250V 2 Gang 1 Way Switch | Model : A3G32B1A-WE-G2
Specifications :
| Range | Affle Plus |
|---|---|
| Product or component type | Switch |
| Device application | Control switch |
| load type | Fluorescent lamp Inductive Incandescent lamp Resistive |
| Colour tint | White |
| Device mounting | Flush |
|---|---|
| Switch function | 1-way |
| Cable cross section | 4 mm² stranded cable 2.5 mm² solid cable 2.5 mm² stranded cable 4 x 4 mm² solid cable for AC |
| Rated current | 10 AX at 250 V AC |
| Number of gangs | 2 gangs |
| Material | Polycarbonate: grid plate Polycarbonate: base Polycarbonate: dolly Polycarbonate: surround Polycarbonate: actuator |
| Connections – terminals | Screw terminal Brass terminal |
| Embedding depth | 24.9 mm |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 35.6 mm |
| Maximum ambient air temperature for operation | 35 °C |
|---|---|
| Relative humidity | 0…95 % |
| Operating altitude | 5000 m |
| Product certifications | IEC |
| Standards | IEC 60669-1 MS IEC 60669-1 BS EN 60669-1 |
