RoverCNC OX Gantry Plates (Belt Drive System) Kit Tumblr Online

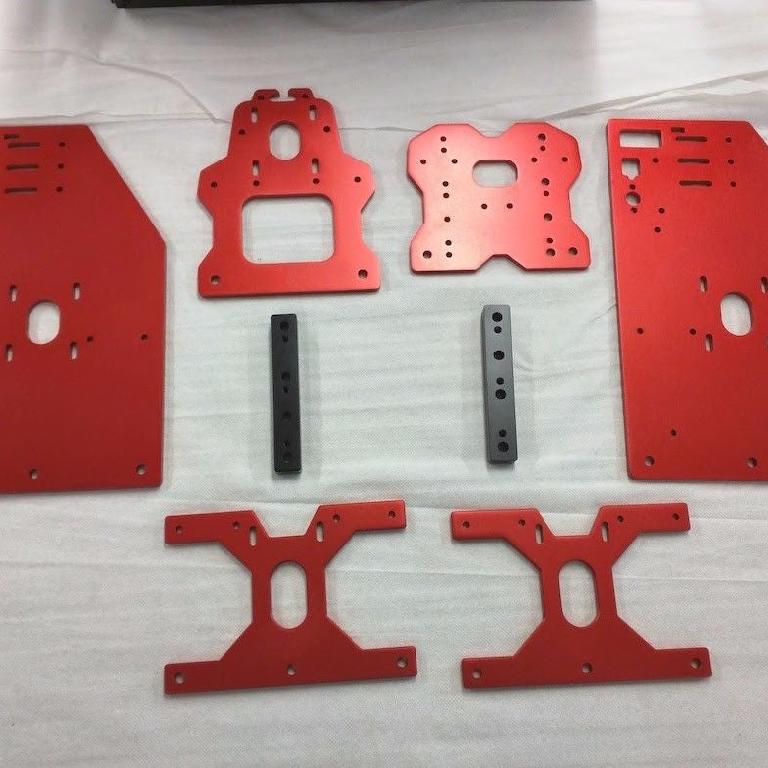

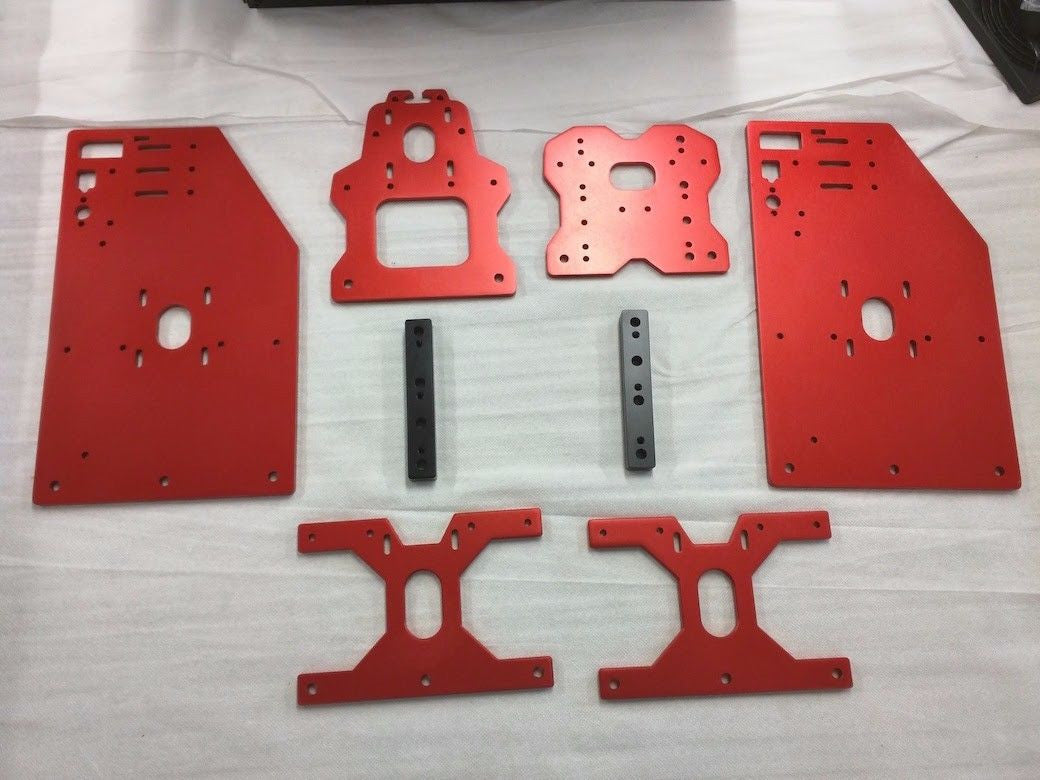

What we have is an eye catching RED anodized Tall Gantry and Z-Plates. The package includes:

• 2 Tall Gantry Plates: 6061-T6 Aluminum Gantry Plates with 2 1/2″ Taller side plates that give you an additional 2 1/2″ Z travel, 4-wheel version of the X plate, includes enhancements (The 4-wheel X plate and 4-wheel Spacer blocks can also be used with only 3 wheels)

• 12 mm holes in the side plates so you can run wires through the Middle of the X rail
• 2 extra holes in Both X plates so you can add 2 more sets of wheels for more stability or belt support
• Taller X plate and spacers for 4 wheels on the Z axis for more stability
• 2 1/2″ Taller Side plates for 2 1/2″ extra Z travel

• A pair of Y-Braces to support the gantry

• A pair of plates for the Z-Axis

• A pair of black anodized 4-Wheel Spacers

Here is short video of a build made by Peter Oaks: RoverCNC OX Build
