RoverCNC Low Profile Z-Axis Assembly – 8.10″ Stroke Sale Reliable

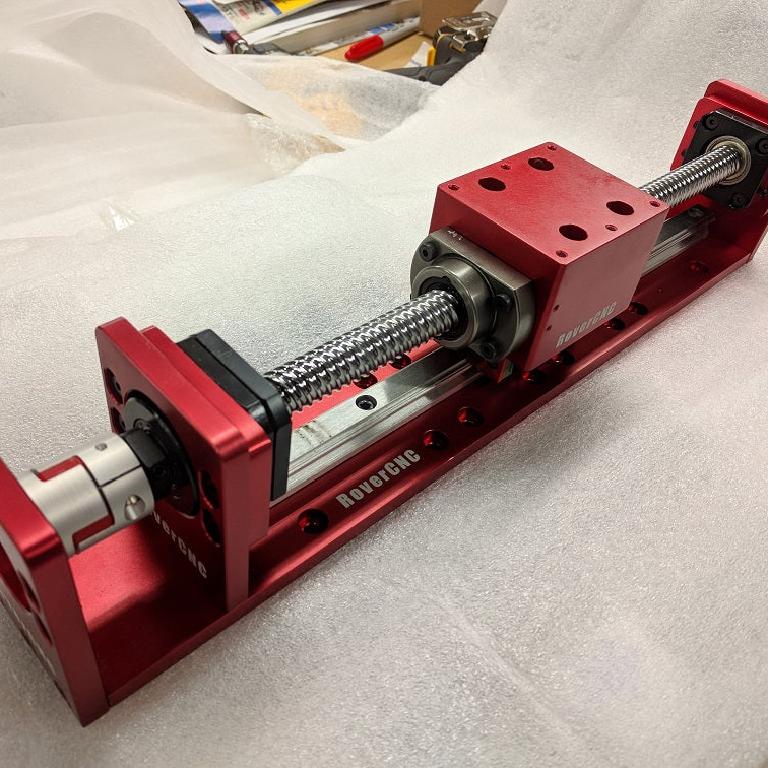

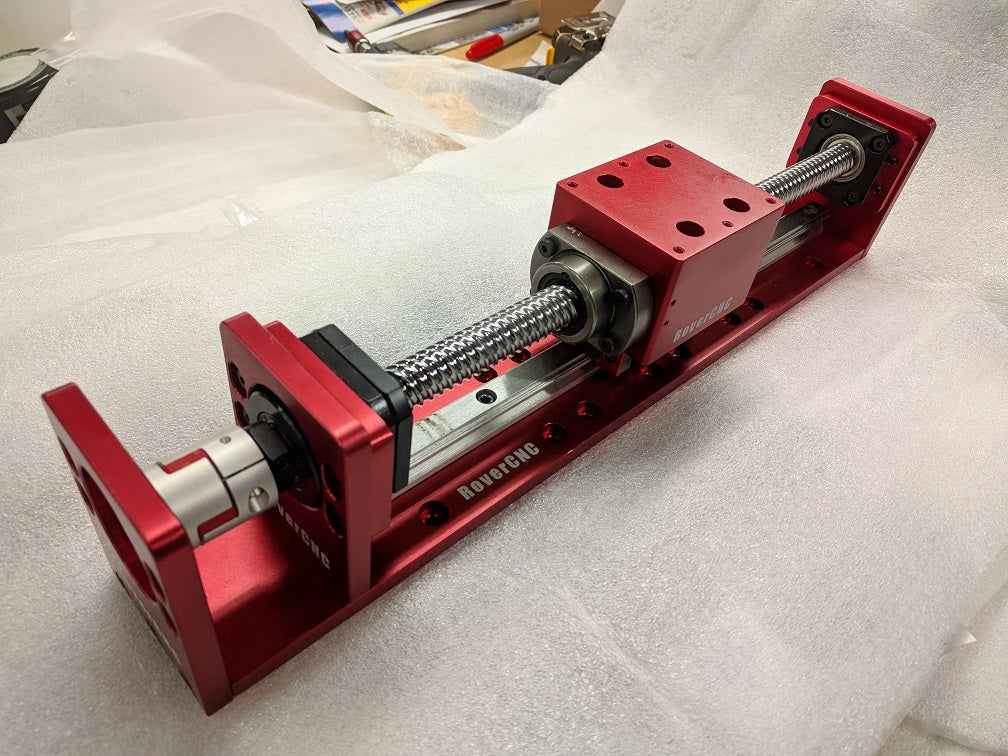

This is a low profile Z-Axis Assembly made from solid aluminum blocks! Using high quality linear block rails, and fast travel precision ball-screw (1616) making it perfect for your next CNC project such as mounting a plasma torch or spindle. The rail is a full-size 15mm linear rail and block to withstand load and vibration.

8.10″ Inches of Stroke (Travel)

• Precision 1616 Ballscrew Drive (10mm Coupling Shaft)

• 15mm Linear Rail and block
• Travel (Stroke) = 8.10″
• Standing Height (without Mount) = 80mm (3.15″)
• Length = 396mm (15.59″)
• 6 mounting holes are 50mm x 30mm apart

The z-axis assembly does not includes a coupling (shown in pictures) which can be purchased separately for a NEMA23 motor. The assembly also does not include the motor!
