NTI ENVIROMUX-MICRO-TRHP POE Micro Environment Monitoring System With Mastercard

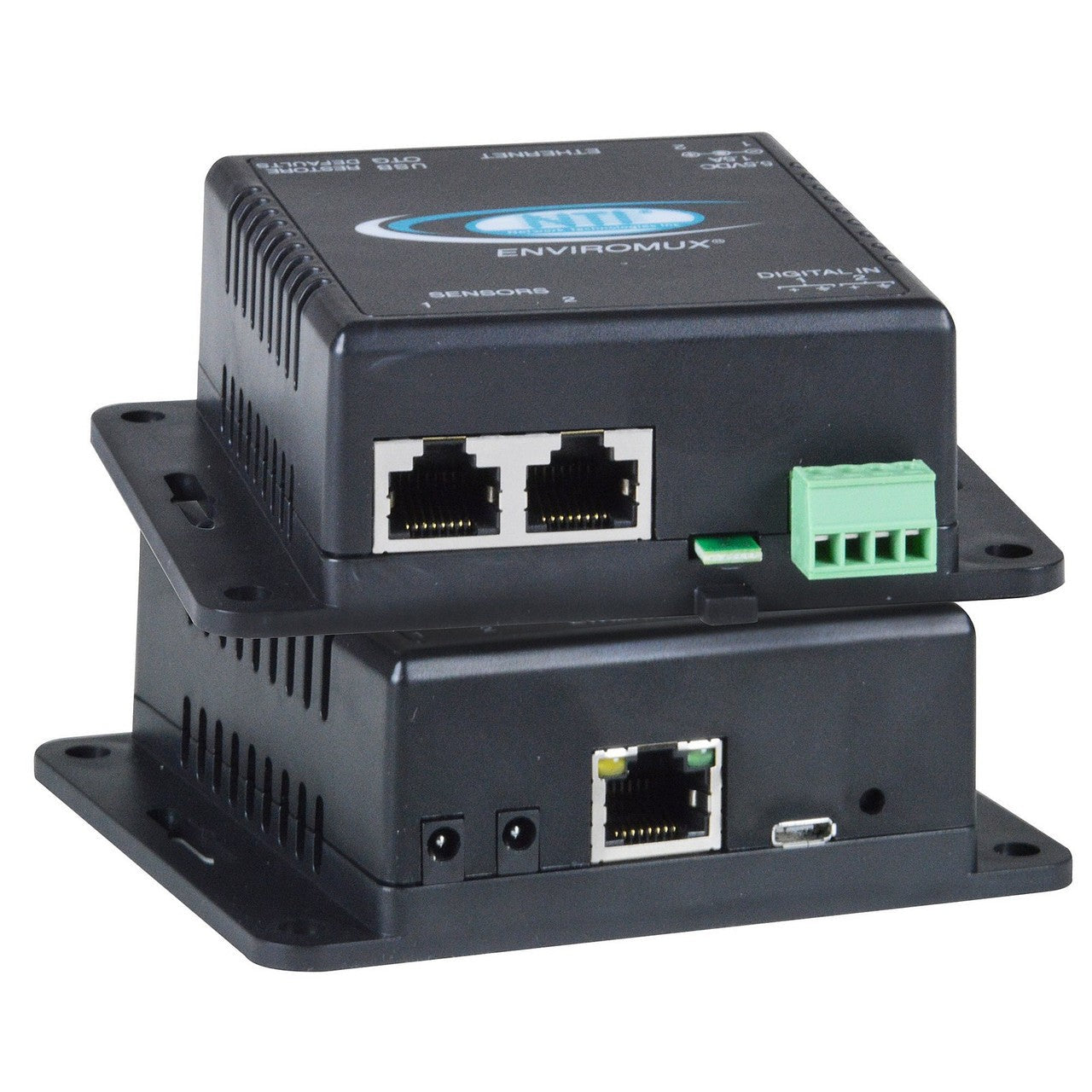

NTI ENVIROMUX-MICRO-TRHP POE Micro Environment Monitoring System

The ENVIROMUX Micro Environment Monitoring System monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, web page, network management (SNMP), and/or SMS messages (via external USB 3G modem).

Key Features

• 1 integrated temperature/humidity combination sensor
• 2 RJ45 ports for external temperature/humidity sensors
• 2 digital inputs sensitive to contact closure
• Built-in Power over Ethernet and dual DC power provides triple redundancy
• Sensors are hot pluggable
• Monitor (ping) up to 4 IP network devices ± alerts are sent if devices are not responding
• Create multiple alerts for any installed sensor.
• Sensor conditions can be configured to trigger alerts by themselves, and/or be used in combination with other alerts to trigger one Smart Alert
• Alerts are posted in message log, which is accessible through Web user interface
• Automatically configures network settings received from a connected DHCP server
• Supports 4 IP network video cameras for live view of any facility
• Integrates with various Open Source SNMP monitoring packages -Nagios and MRTG
• USB port for connecting USB modem
• Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX units and all connected sensors
• Security: HTTPS, SSLv3, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights
• Use in data centers, co-lo sIt’s, web hosting facilities, telecom switching sIt’s, POP sIt’s, server closets, or any unmanned area that needs to be monitored

Technical Specifications

RJ45 Sensor Ports
Two RJ45 modular jacks for connecting temperature sensors or combined temperature/humidity sensors.
Three levels of user-defined alerts ± normal, warning, critical
USB Port
One female Micro USB connector for connecting a USB Modem.
Ethernet Port
One female RJ45 connector.
10/100 Base-T Ethernet interface.
Integrated Temperature/Humidity Sensor
Applications from -4 to 167°F
Accuracy: +/-0.72°F at -14 to 167°F, +/-0.9°F at -4 to 23°F
Resolution: 0.2°F
Applications from 0 to 90% relative humidity at temperatures between -4 to 167°F (-20 to 75°C)
Accuracy:0 to 80% relative humidity, +/-2%80 to 90% relative humidity, +/-3%
Power
Built-in Power over Ethernet and dual DC power provides triple redundancy.
If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
The unit draws power from the source with the highest DC voltage (nominal 5.5V).
If two or more sources have exactly the same voltage, it will draw in part from each of them.
110 to 240 VAC at 50 or 60 Hz via AC adapter (not included).
Country-specific AC adapters sold separately (PWR-SPLY-EMICRO).
Input voltage: 5.5VDC +/-5%
Power consumption: 4W max.
Environmental
Operating & Storage Temperature: -4 to 167°F
Operating & Storage Relative Humidity: 0 to 99% non-condensing RH.
Dimensions
WxDxH in (all options): 4″ x 3.44″ x 1.37″ (Includes mounting holes to match rack hole spacing)
