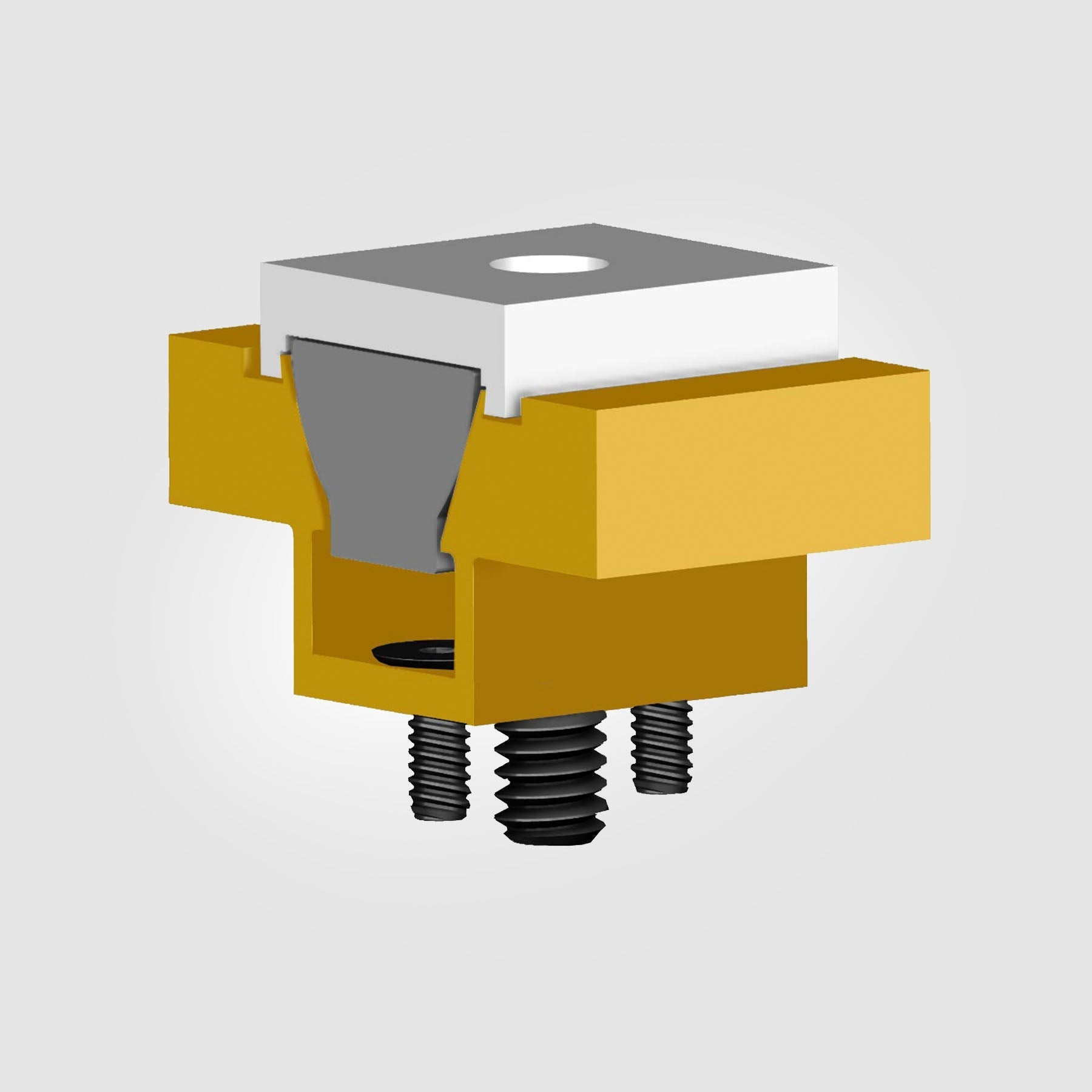

TITAN’s go-to clamps for advanced fixturing and workholding setups!

• The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel
• The locking plate properly expands the clamp, while making it rigid for machining

#5001125X256

Technical Data

• Quantity: 1
• [A] Clamp Clearance: 1.125″
• [F] Machinable Stock: 0.180″
• [H] Mounting Screws: 2-56
• Screw Size: 8-32
• Max Torque: 2.5 ft-lbs
• Holding Force: 500 lbs

Country of Origin: United States of America.

#7501500X632

Technical Data

• Quantity: 1
• [A] Clamp Clearance: 1.500″
• [F] Machinable Stock: 0.260″
• [H] Mounting Screws: 6-32
• Screw Size: 1/4-20
• Max Torque: 10.8 ft-lbs
• Holding Force: 1500 lbs
• Replacement part part for the ART OF FIXTURING Tool Kit

Country of Origin: United States of America.

#10002000X632

Technical Data

• Quantity: 1
• [A] Clamp Clearance: 2.000″
• [F] Machinable Stock: 0.390″
• [H] Mounting Screws: 6-32
• Screw Size: 5/16-18
• Max Torque: 10.4 ft-lbs
• Holding Force: 2000 lbs

Country of Origin: United States of America.

#15003000X1032

Technical Data

• Quantity: 1
• [A] Clamp Clearance: 3.000″
• [F] Machinable Stock: 0.620″
• [H] Mounting Screws: 10-32
• Screw Size: 1/2-13
• Max Torque: 28.3 ft-lbs
• Holding Force: 3500 lbs

Country of Origin: United States of America.

#20004000X1420

Technical Data

• Quantity: 1
• [A] Clamp Clearance: 4.000″
• [F] Machinable Stock: 0.800″
• [H] Mounting Screws: 1/4-20
• Screw Size: 5/8-11
• Max Torque: 55 ft-lbs
• Holding Force: 6000 lbs

Country of Origin: United States of America.

#50028600mmXM2

Technical Data

• Quantity: 1
• [A] Clamp Clearance: 28.600mm
• [F] Machinable Stock: 6.300mm
• [H] Mounting Screws: M2
• Screw Size: M4
• Max Torque: 3.40 N.m
• Holding Force: 2225 N

Country of Origin: United States of America.

#75038100mmXM4

Technical Data

• Quantity: 1
• [A] Clamp Clearance: 38.100mm
• [F] Machinable Stock: 9.400mm
• [H] Mounting Screws: M4
• Screw Size: M6
• Max Torque: 14.30 N.m
• Holding Force: 6675 N

Country of Origin: United States of America.

#100050800mmXM4

Technical Data

• Quantity: 1
• [A] Clamp Clearance: 50.800mm
• [F] Machinable Stock: 12.700mm
• [H] Mounting Screws: M4
• Screw Size: M8
• Max Torque: 14.50 N.m
• Holding Force: 8900 N

Country of Origin: United States of America.

#150076200mmXM5

Technical Data

• Quantity: 1
• [A] Clamp Clearance: 76.200mm
• [F] Machinable Stock: 19.100mm
• [H] Mounting Screws: M5
• Screw Size: M12
• Max Torque: 38.40 N.m
• Holding Force: 15575 N

Country of Origin: United States of America.

#2000101600mmXM6

Technical Data

• Quantity: 1
• [A] Clamp Clearance: 101.600mm
• [F] Machinable Stock: 25.400mm
• [H] Mounting Screws: M6
• Screw Size: M16
• Max Torque: 74.60 N.m
• Holding Force: 26700 N

Country of Origin: United States of America.
