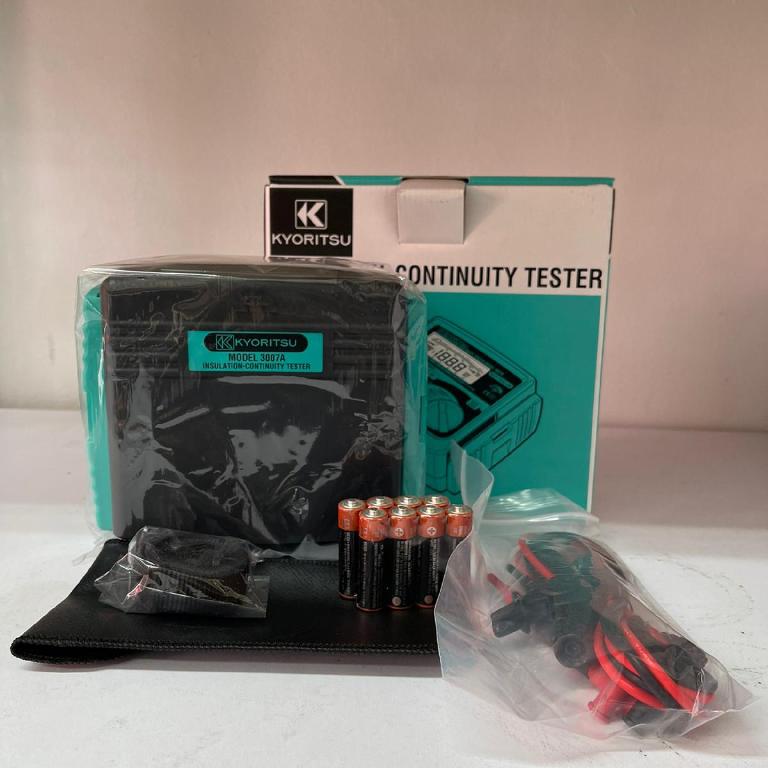

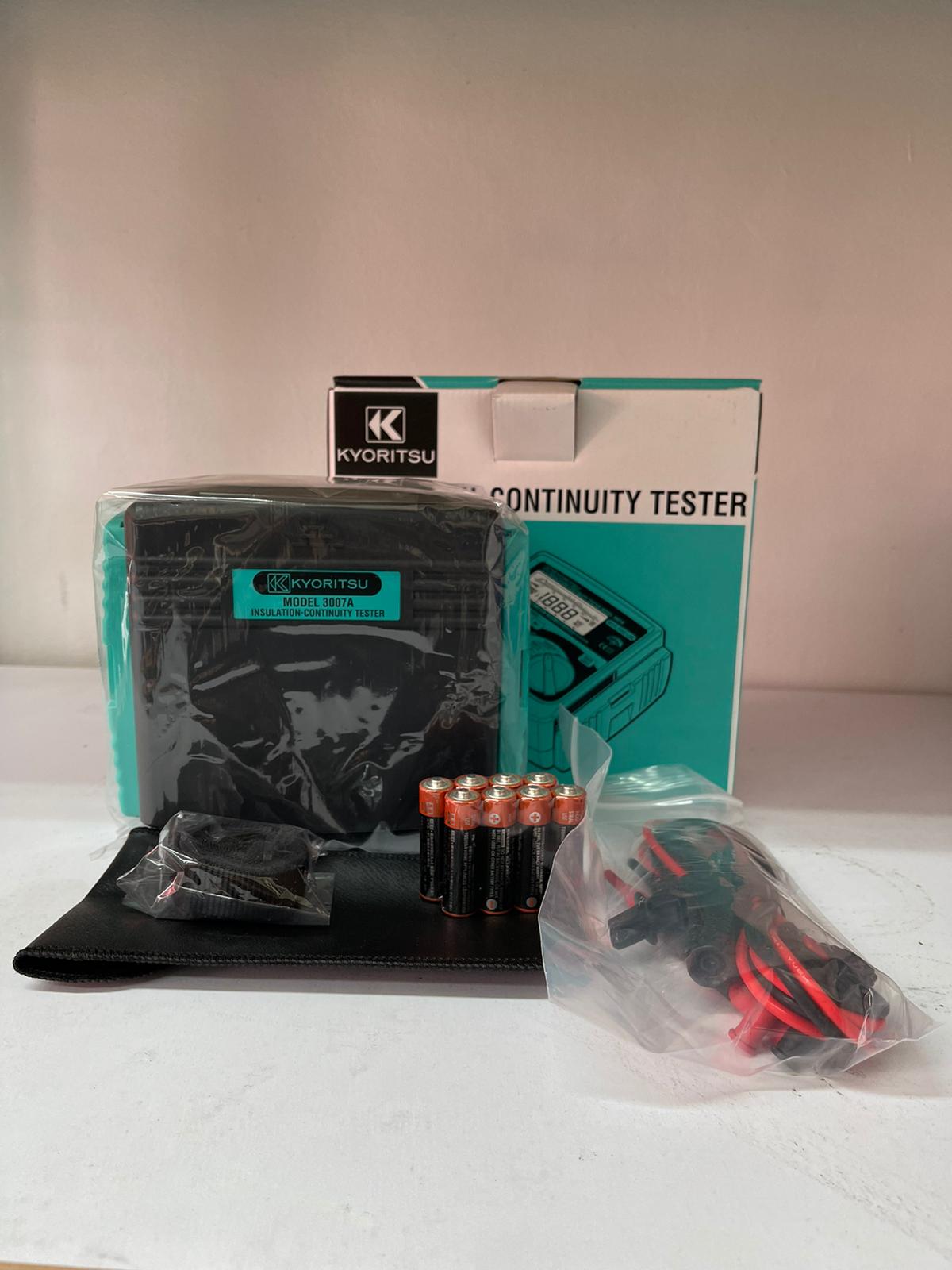

Kyoritsu Insulation Tester  | Model : KM3007A

Features :

• Designed to safety standards
• IEC 61010-1 , 61010-2-030 Measurement CAT III 300 V pollution degree 2
• IEC 61010-031
• IEC 61557-1,2,4,10
• Display with back light function to facilitate work at night or dimly lit locations (Model : 3007A only)
• Bar Graph to indicate measured results Strap belt to make both hands ‘ operation easier
• Live circuit warning indication and buzzer
• Auto discharge function
• When insulation resistance is measured, electric charges stored in capacities circuit s are automatically discharged after testing. Discharge can be checked with live circuit warning.
• Auto Power Off function
• To prevent the instrument from being left powered on and conserve battery power, the instrument automatically turns off approx. 10 minutes after the last switch operation
• LOK mode (Model : 3007A only)
• The test current is removed once a stable reading is reached to prevent unnecessary battery consumption

Specifications :

• Insulation Resistance Ranges
• Nominal output voltage : 250, 500, 1000 V
• Measuring Ranges
• 0 ~ 19.99 M Ω
• 0 ~ 199.9 M Ω
• 0 ~ 1999 M Ω
• Open – Circuit Voltage
• 250 V DC
• +20 %
• – 0 %
• 500 V DC
• +20 %
• – 0 %
• 1000 V DC
• +20 %
• – 0 %
• Norminal Current
• 1 mA DC min at 0.25M Ω
• 1 mA DC min at 0.5M Ω
• 1 mA DC min at 1M Ω
• Short – Circuit Current : 1.5 mA approx
• Accuracy
• 20 and 200 M Ω ( ±1.5%rdg & ±5dgt+ )
