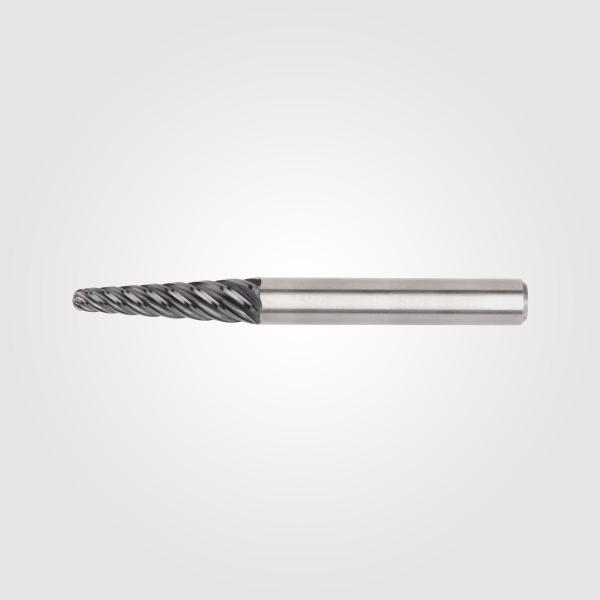

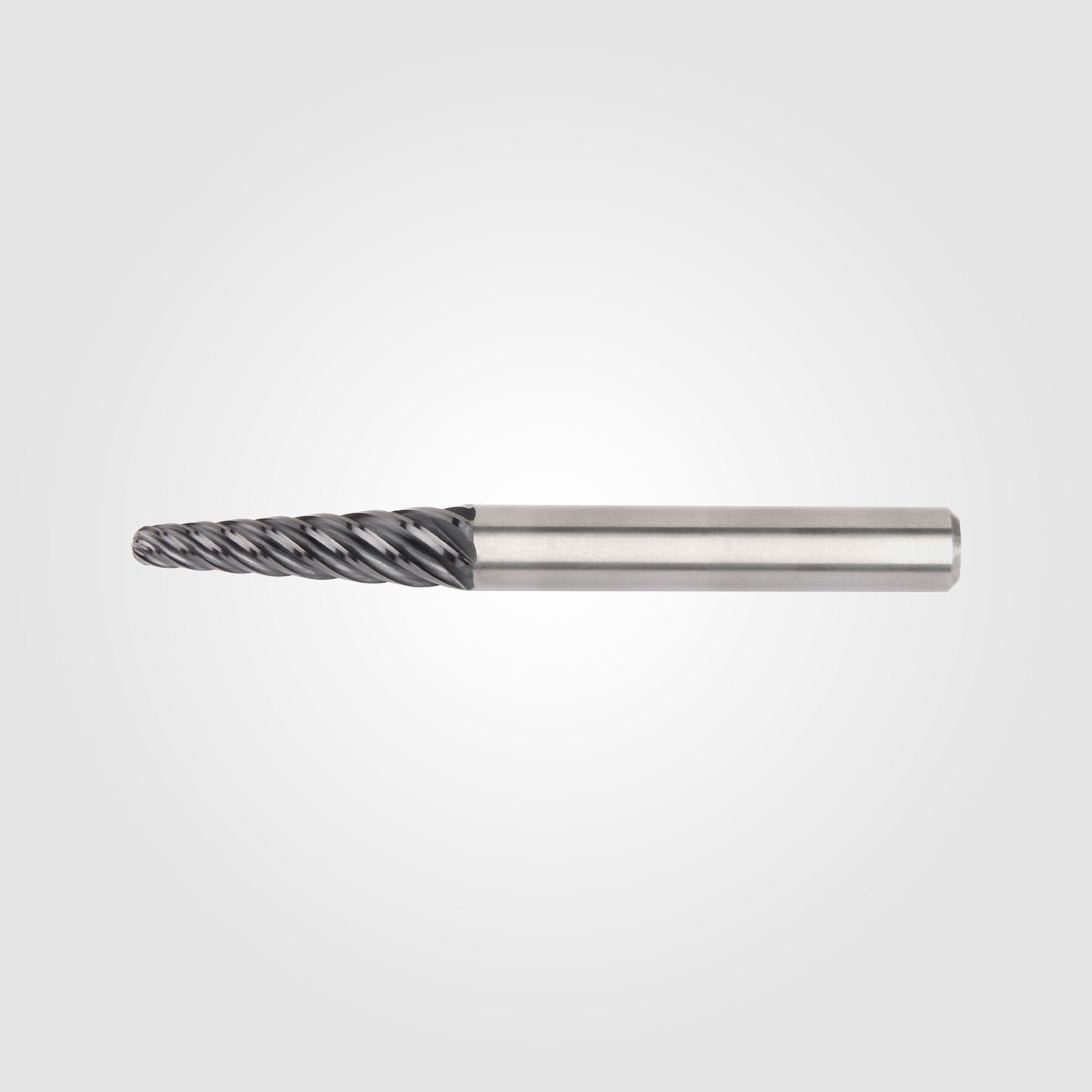

The HARVI III taper ball nose was designed for 5-axis machining of tough materials. Increase your output and solve capacity issues by significantly reducing your machine time!
Absolute Beast in Titanium
- Designed for highly productive 3D roughing and finishing operations
- Center cutting for expanded ramping capabilities
- Optimized geometry for titanium machining
- Unequal flute spacing minimizes chatter for smoother machining
Materials
- Steel, Stainless Steel, Cast Iron, High-Temp Alloys, Hardened Materials
Technical Data
- Grade: KCPM15
- Coating: AlTiN
- Series: UJBE
- Number of Flutes: 6
- Adapter Style: Straight-Cylindrical
- Effective Cutting Diameter: 0.250″
- Shank: 0.500″
- Length of Cut: 1.5625″
- Maximum Depth: 1.5625″
- Overall Length: 4.000″
- Corner Style: Ball Nose
- Lead Angle (ANSI): 4°
- Helix Angle: 38°
Country of Origin is subject to change.
Safety data sheets upon request.
