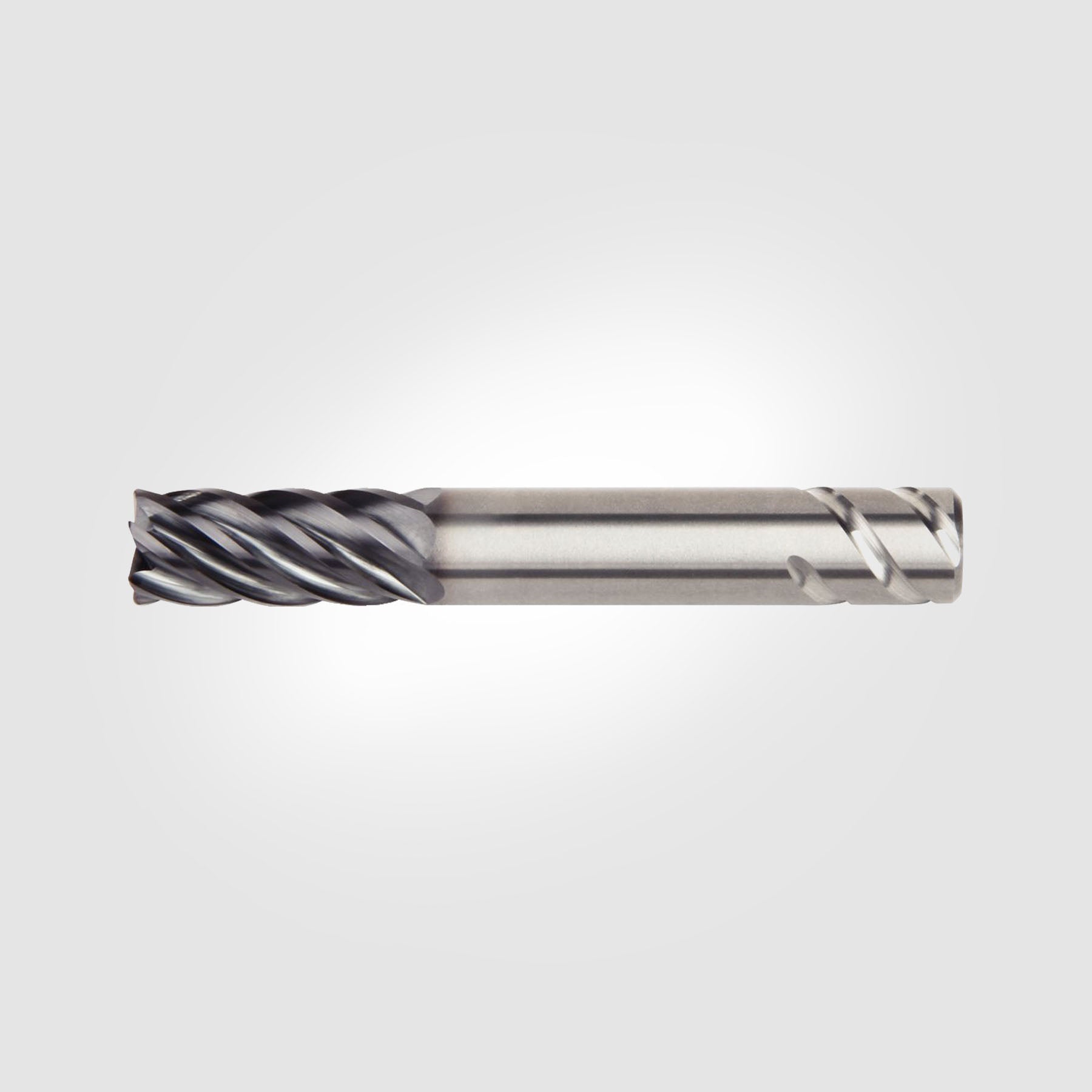

HARVI III 1 1/4″ x 1 1/4″ x 2 1/4″ x 5″ SOLID CARBIDE ENDMILL 5351942 Clearance 100% Guaranteed

“I was losing a TON of money on a very important aerospace job. The material was Inconel 718 and I had tried all of the top endmill brands, using their specifications. They ALL failed in under 90 minutes…

The Harvi 3 lasted 7 hours.“

– TITAN GILROY

Absolute Beast in Titanium

• Single tool for both roughing and finishing operations requiring fewer setups
• Center cutting for expanded ramping capabilities
• Optimized geometry for titanium machining
• Unequal flute spacing minimizes chatter for smoother machining
• SAFE-λOCK® Shank prevents end mill pullout, enabling higher feed rates

Materials

• Steel, Stainless Steel, Cast Iron, High-Temp Alloys, Hardened Materials

Technical Data

• Grade: KCPM15
• Coating: AlTiN
• Series: UJDE
• Number of Flutes: 6
• Adapter Style: SAFE-λOCK®
• Effective Cutting Diameter: 1.250″
• Shank: 1.250″
• Length of Cut: 2.250″
• Overall Length: 5.000″
• Corner Radius: 0.030″
• Helix Angle: 38°

Country of Origin is subject to change.

Safety data sheets upon request.
