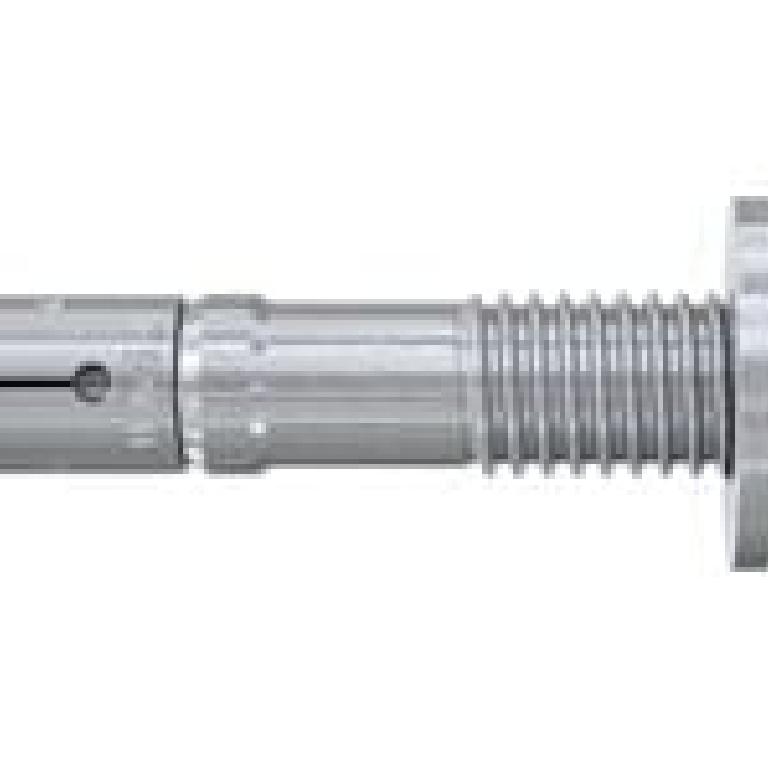

Fischer Wedge Anchor M10X85 (HSA)(560924)(50pc/Box) | Model: WA-F1085



Specification:

<col style="width: 69.3669%;" <col style="width: 30.5355%;"

ETA-approval	✓
Drill diameter (d0)	10 mm
Min. drill hole depth for through fixings (h2)	78 mm
Anchor length (l)	85 mm
Max. usable length hef,stand./hef,min. (tfix)	10 / 20 mm
Thread (ø x length)	M10 x 46 mm
Width across nut	17 mm
Amount	50 pcs.

Applications:

• Steel constructions
• Guard rails
• Consoles
• Ladders
• Cable trays
• Machines
• Staircases
• Gates
• Façades

Functionality:

• The FBN II is suitable for pre-positioned and push-through installation; also suitable for stand-off installation under certain conditions.
• Prior to installation, place the hexagon nut in the optimal position (the drive-in pin projects by approx. 3 mm out of the hexagon nut).
• When applying the torque, the cone bolt is pulled into the expansion clip and expands it against the drill hole wall.
• The head embossing offers a simple control of the anchoring.
• In the case of series installation, we recommend using the FABS bolt anchor setting tool.

Advantages:

• The standard anchorage depth achieves high load-bearing capacities. This means that fewer fixing points and smaller anchor plates are required.
• The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
• The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility.
• Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation.
• The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.
