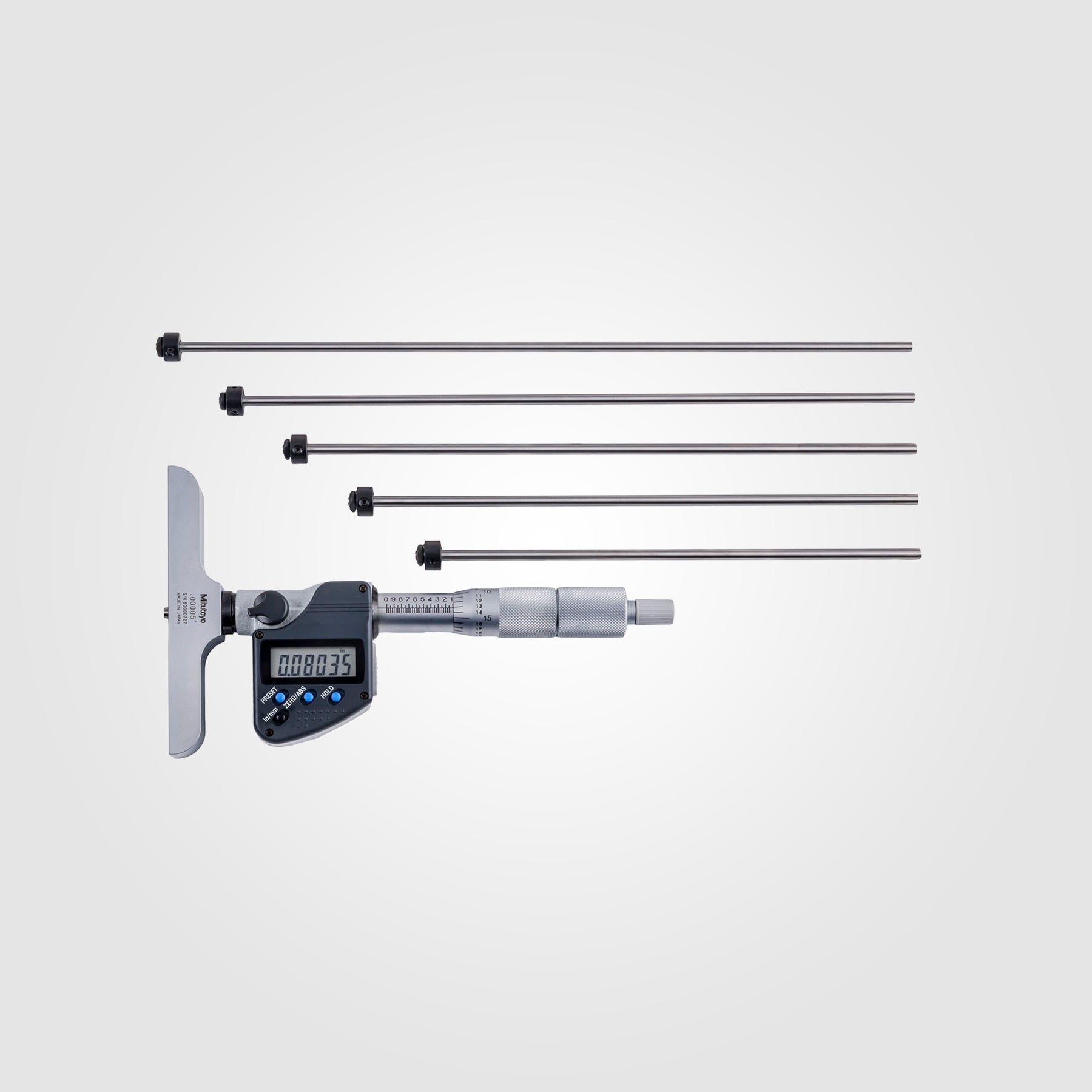

Digimatic Depth Micrometer (w/interchangeable rods) Best

#All

• Ø4mm interchangeable rods, with lapped measuring end, provide a wide measuring range
• The rod length can be adjusted in 25mm or 1in increments
• With ratchet stop for constant force
• With measuring rod clamp
• With SPC output
• With digit counter
• Supplied in fitted plastic case

#06in-01524mm

Technical Data

• Accuracy: ±.00015in ±3µm for micrometer head feed ±[.00008 + (.00004xR/3)]in R= max. measuring length (inch) ±(2+L/75)µm for interchangeable rod, L=Max. measuring length (mm)
• Resolution*: 0.001mm or .00005″/0.001mm
• Graduation**: 0.01mm or .001in
• Flatness of reference face: .00005in for 2.5in/1.3µmfor 63.5mm width base, .00008in for 4in/2µm for 101.6mm width base
• Flatness of measuring rod face: 0.3µm
• Parallelism between reference face and measuring rod face: [.00016 + (.00004 x R/2]in R=max. measuring range (inch)
• (4+L/50)µm, L=Max. measuring length (mm) Measuring rod diameter: .157in/4mm
• Display: LCD

#012in-03048mm

Technical Data

• Accuracy: ±.00015in ±3µm for micrometer head feed ±[.00008 + (.00004xR/3)]in R= max. measuring length (inch) ±(2+L/75)µm for interchangeable rod, L=Max. measuring length (mm)
• Resolution*: 0.001mm or .00005″/0.001mm
• Graduation**: 0.01mm or .001in
• Flatness of reference face: .00005in for 2.5in/1.3µmfor 63.5mm width base, .00008in for 4in/2µm for 101.6mm width base
• Flatness of measuring rod face: 0.3µm
• Parallelism between reference face and measuring rod face: [.00016 + (.00004 x R/2]in R=max. measuring range (inch)
• (4+L/50)µm, L=Max. measuring length (mm) Measuring rod diameter: .157in/4mm
• Display: LCD
