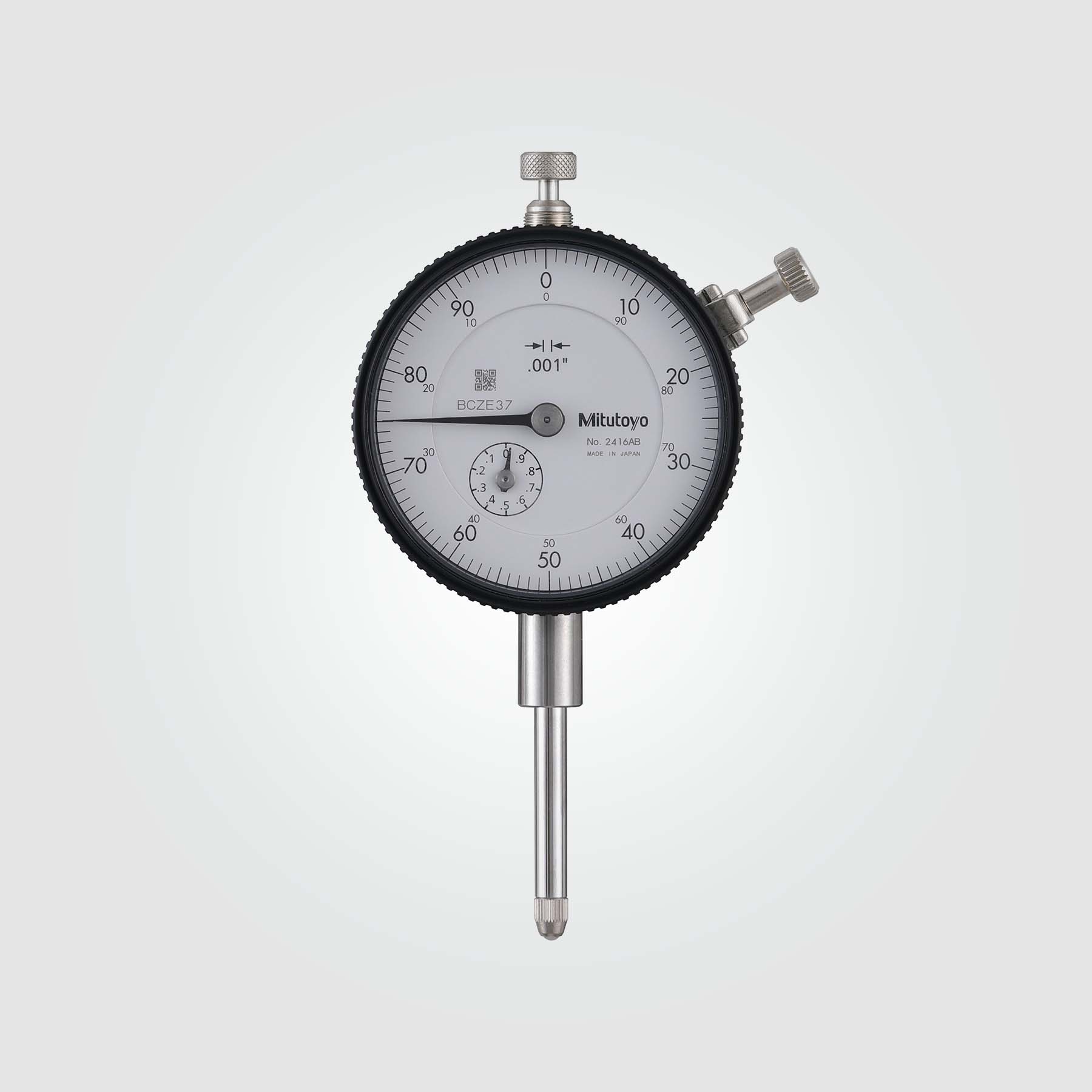

Dial Indicator (0-1″ Range) Clearance Manchester

• The revolutionary stem-bush design for trouble-free stem clamping and longer clamping range
• No through screw-hole on the frame for high dust-resistance
• Greater rigidity in the bearing plate for reducing the tracing error (20% and 4-screw mounting for increasing impact resistance)

Technical Data

• Graduation: 0.001″
• Range: 0.1″
• Dial Diameter: 2.244″
• Accuracy: 0.002″
• Range Per Revolution: 1″/0.1″
• Revolution Counter: Yes
• Stem Dial: 3/8″
• UNF: 4-48
• Measuring Force: 1.8
