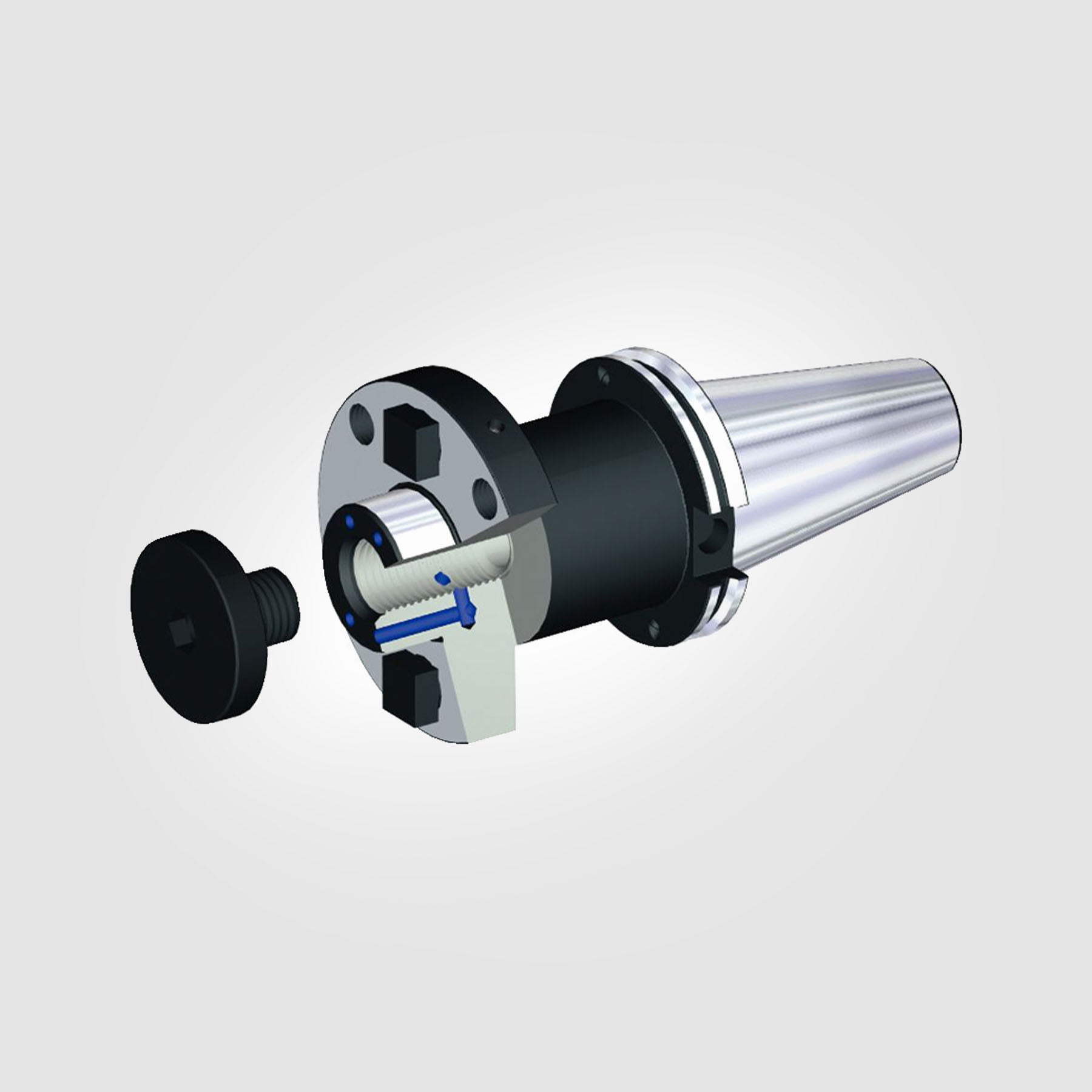

CV50 Steep Taper .750″ Shell Mill Adapter (THROUGH COOLANT) 3640200 Clearance Latest

Machine Your Way to Success!

• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

Technical Data

• Adapter Type: Steep Taper
• System Size: CV50
• [D1] Adapter Diameter (Inch): 0.750″
• [D1] Adapter Diameter (Metric): 19.050mm
• [D2] Body Diameter (Inch): 1.460″
• [D2] Body Diameter (Metric): 37.000mm
• [L1] Gage Length (Inch): 5.500″
• [L1] Gage Length (Metric): 139.700mm
• [L] Overall Length (Inch): 10.188″
• [L] Overall Length (Metric): 258.775mm
• [L2] Usable Length (Inch): 4.750″
• [L2] Usable Length (Metric): 120.650mm
• Through Coolant: Yes
• Coolant Entry Style: Flange & Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
