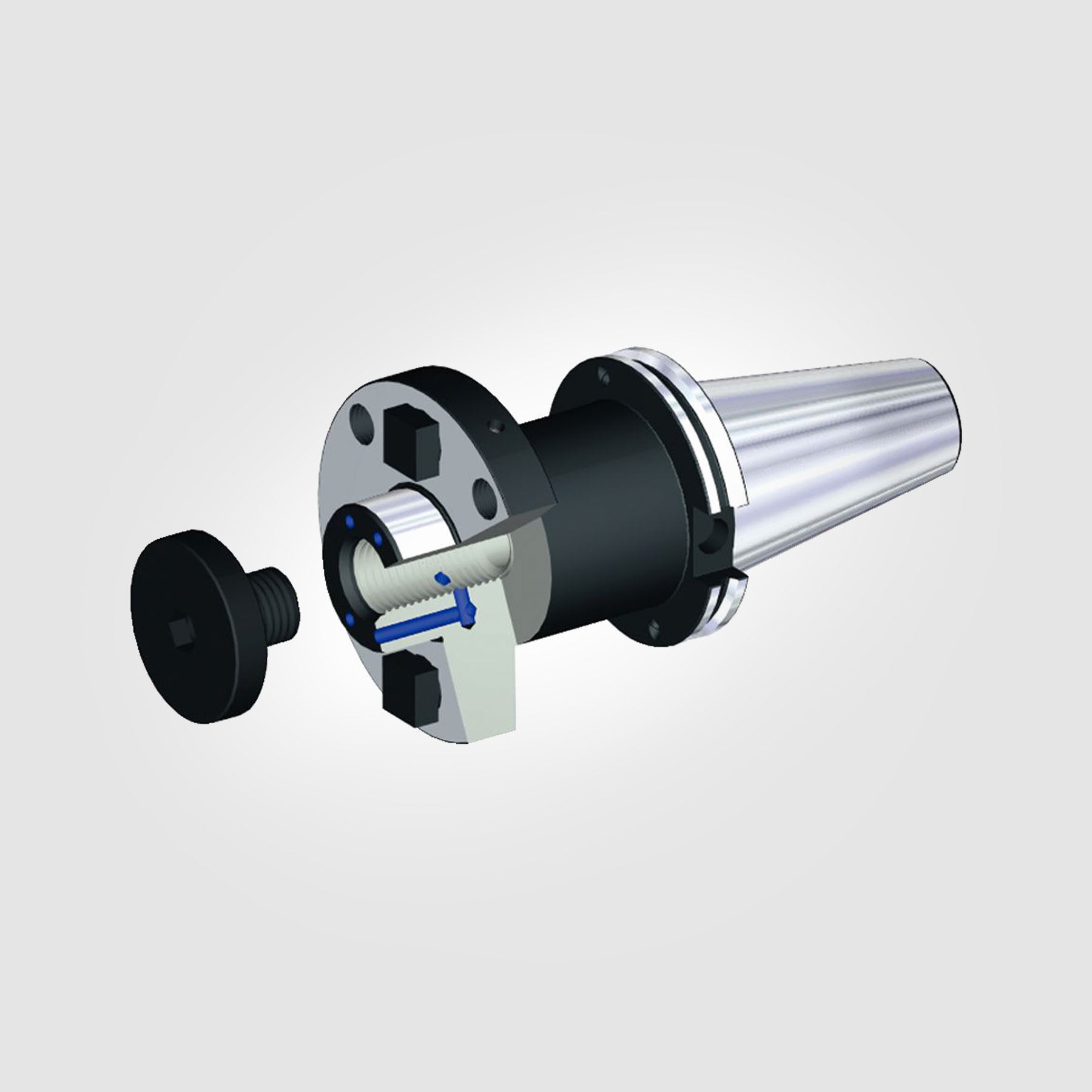

CV50 Steep Taper 1″ Shell Mill Adapter (THROUGH COOLANT) 3640205 Clearance Find Great

Machine Your Way to Success!

• Improve your tool life and workpiece surface quality
• Quicker and easier tool changes
• High-performance holders, built to last

Technical Data

• Adapter Type: Steep Taper
• System Size: CV50
• [D1] Adapter Diameter (Inch): 1.000″
• [D1] Adapter Diameter (Metric): 25.400mm
• [D2] Body Diameter (Inch): 2.750″
• [D2] Body Diameter (Metric): 69.900mm
• [L1] Gage Length (Inch): 4.000″
• [L1] Gage Length (Metric): 101.600mm
• [L] Overall Length (Inch): 8.688″
• [L] Overall Length (Metric): 220.680mm
• [L2] Usable Length (Inch): 3.250″
• [L2] Usable Length (Metric): 82.550mm
• Through Coolant: Yes
• Coolant Entry Style: Flange & Axial Coolant

Country of Origin is subject to change.

Safety data sheets upon request.
