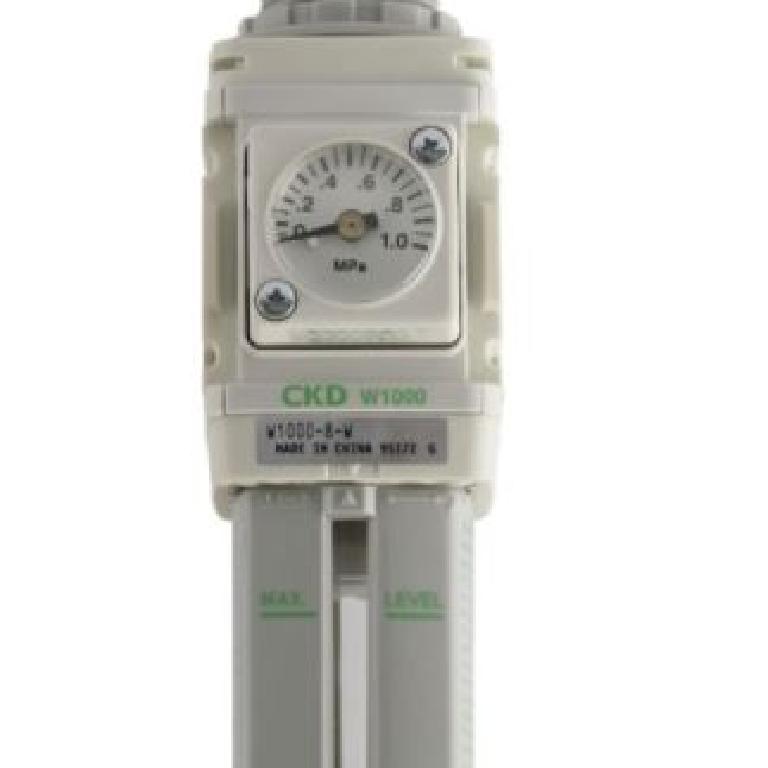

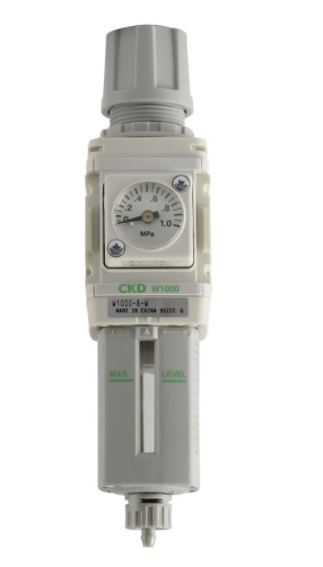

Ckd W1000-8-W Filter Regulator | Model : W1000-8-W

Features :

• Compact modularization: Modular design that unifies the main dimensions (width and depth) of each FRL device compactly.

• Assembled dimensions are accurately calculated with a simple calculation.

• The element with long service lifespan incorporates a unique chemical fiber
• structure that is rough on the surface and becomes finer the further inward it goes.
  Greatly reduced clogs and greatly improved element service lifespan.

• No rust concerns.

• Space saving recessed pressure gauge: Past models had a pressure gauge that stuck out of the front surface, wasting space or being at risk of striking the employees.
• This recessed design is both clean and an improvement to safety.
   Weight is reduced by 50% (compared to C4000) compared to past models.

Specifications :

• Regulator unit Combinataion : Filter regulator

• Connection Dia : Rc1/4

• Min dripping flow rate : 0.03 I/min

• Max. Operation pressure : 1 Mpa

• Bowl Guard : presence

• Flow Dircetion : standard Flow (Right-> Left)

• Set Pressure Range : 0.05 ~ 0.85 Mpa

• Filter, Filtration Level : 5μm

• Compressed Air Quality : General Dry Air

• Bowl Material : Resin
• Relief : Relief

• Drain Storage capacity : 12 Cm
